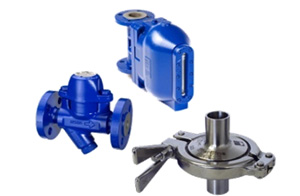

Thermostatic Steam Traps BK
with Duo Stainless Steel (Bimetallic) Regulator PN 40 to PN 630/CL2500
Features of the BK series:
● No loss of live steam
● Robust regulator, unaffected by waterhammer and frost
● Automatic air-venting (can be air vent in steam systems)
● Suitable for superheated steam applications
● Stainless steel or Titanium alloy internals
● Stage nozzle for dynamic function act as check valve
● Built-in strainer
● Base busing ensures positive metal-to-metal internal sealing
● Installation in horizontal or vertical lines. Repairable in-line.
Gestra BK45, BK46 DN15(1/2")-DN25(1") Max Diff. Pressure : 22/32 Bar
End connections: Flanged PN40, Class150/300, socket-weld ends, butt-weld ends, screwed sockets
Body Material : Carbon steel, Alloy steel for high temperature service
Download Technical Sheets
Gestra BK15 DN40(1 1/2")-DN50 (2") Max Diff. Pressure : 22 Bar
End connections: Flanged PN40, Class150/300, socket-weld ends, butt-weld ends, screwed sockets
Body Material : Carbon steel
Download Technical Sheets
Gestra BK27N DN40(1 1/2")-DN50 (2") Max Diff. Pressure : 45 Bar
End connections: Flanged PN40/63, Class400, socket-weld ends, butt-weld ends
Body Material : Alloy steel for high temperature service
Download Technical Sheets
Gestra BK37, BK28, BK29 DN15(1/2")-DN25(1") Max Diff. Pressure : 45/85/110 Bar
End connections: Flanged PN63/100/160, Class400/600/900/1500, socket-weld ends, butt-weld ends
Body Material : Alloy steel for high temperature service with wear-resistant titanium alloy nozzle stem and seat
Download Technical Sheets
Gestra BK212 DN15(1/2")-DN25(1") Max Diff. Pressure : 275 Bar
End connections: Flange CL1500/CL2500, Socket-weld ends, butt-weld ends
Body Material : Alloy special steel for higer pressure and temperature combinations,
Alloy special martensitic creep resistance F91 with wear-resistant titanium alloy nozzle stem and seat
Download Technical Sheets
Thermostatic Steam Traps MK
with Hastelloy Mambrane Regulator PN 25 to PN 40/CL300
Features of the MK series:
● No loss of live steam
● Very sensitive response characteristic
● Function is not impaired by high back pressure
● Automatic air-venting (can be air vent in steam systems)
● High hot-water capacities even with low diff. pressure
● With tandem seat (double sealing) for low flowrate
● Built-in non-return valve and strainer
● Stainless steel internal with corrugated Hastelloy membrane
● Installation in horizontal or vertical lines. Repairable in-line.
Gestra MK35/31, MK35/32 DN10(3/8")-DN15(1/2") Max Diff. Pressure : 21 bar
End connections: Socket-weld ends , screwed sockets
Body Material: Carbon steel
Download Technical Sheets
Gestra MK35/2S, MK35/2S3 DN25(1") Max Diff. Pressure : 32 bar
End connections: Flanged PN40, Class150/300, socket-weld ends, screwed sockets, butt-weld ends
Body Material: Carbon steel
Download Technical Sheets
Gestra MK25/2, MK25/2S DN40(1 1/2" - DN50(2") Max Diff. Pressure : 32 bar
End connections: Flanged PN40, Class150/300, socket-weld ends, screwed sockets, butt-weld ends
Body Material: Carbon steel
Download Technical Sheets
Gestra MK45-1, MK45-2, MK45 A-1, MK45 A-2 DN15(1/2")-DN25(1") Max Diff. Pressure : 32 bar
End connections: Flanged PN40, Class150/300, socket-weld ends, butt-weld ends, screwed sockets
Body Material: Carbon steel, Low carbon stainless steel 316L
Download Technical Sheets
Gestra MK36/51, MK36/52 DN8(1/4")-DN25(1") Max Diff. Pressure : 32 bar
End connections: Screwed sockets, union butt-weld nipples
Body Material: Stainless steel
Download Technical Sheets
Ball-Float Traps UNA
PN 16 to PN 160/CL900
Features of the UNA series:
● No loss of live steam
● Unaffected by back pressure and condensate temperature
● No banking-up of condensate even with extreme load and pressure fluctuations
● Particularly well suited for heat exchangers
● Unaffected by dirt
● Automatic thermostatic air-venting
● Low in friction, ensuring minimal wear with high tightness due to rolling ball valve design
● Ideal for cold condensate and distillated discharge
● Selectable for horizontal or vertical lines. Repairable in-line.
Gestra UNA14, UNA16, UNA16A DN15(1/2")-DN25(1") Max Diff. Pressure : up to 32 Bar
End connections: Flanged PN25/40, Class150, socket-weld ends, butt-weld ends, screwed sockets
Body Material: Carbon steel, Low carbon stainless steel 316L
Download Technical Sheets
Gestra UNA41 DN15(1/2")-DN25(1") Max Diff. Pressure : up to 14 Bar
End connections: Flanged PN16, Class150, socket-weld ends, butt-weld ends, screwed sockets
Body Material: Carbon steel
Download Technical Sheets
Gestra UNA23, UNA25, UNA26 DN15(1/2")-DN50(2") Max Diff. Pressure : up to 32 Bar
End connections: Flanged PN16/40, Class150/300, socket-weld ends, butt-weld ends, screwed sockets
Body Material: Cast iron, Carbon steel, Stainless steel CF8M
Download Technical Sheets
Gestra UNA45, UNA46, UNA46A DN15(1/2")-DN50(2") Max Diff. Pressure : up to 32 Bar
End connections: Flanged PN40, Class150/300, socket-weld ends, butt-weld ends, screwed sockets
Body Material: Carbon steel, Stainless steel 316L
Download Technical Sheets
Gestra UNA45 MAX, UNA46 MAX, UNA46A MAX DN40(1 1/2")-DN50(2") Max Diff. Pressure : up to 32 Bar
End connections: Flanged PN40, Class150/300, socket-weld ends, butt-weld ends, screwed sockets
Body Material: Carbon steel, Stainless steel 316L
Download Technical Sheets
Gestra UNA27h DN25(1")-DN50(2") Max Diff. Pressure : up to 45 Bar
End connections: Flanged PN63, Class300/400/600, socket-weld ends, butt-weld ends
Body Material: Alloy steel for high temperature service
Download Technical Sheets
Gestra UNA38, UNA39 DN15(1/2"), DN25(1")-DN50(2") Max Diff. Pressure : up to 140 Bar
End connections: Flanged PN100/160, Class600/900/1500, socket-weld ends, butt-weld ends
Body Material: Alloy steel for high temperature service
Download Technical Sheets
Gestra UNA SPECIAL Type 62 PN16 Angle pattern DN65(2 1/2")-DN100(4") Max Diff. Pressure : 16 Bar
End connections: Flanged PN16
Body Material: Cast iron
Download Technical Sheets
Gestra UNA SPECIAL PN25 Angle pattern DN50(2")-DN65(2 1/2") Max Diff. Pressure : 22 Bar
End connections: Flanged PN25
Body Material: Carbon steel
Download Technical Sheets
Gestra UNA PN25 Angle pattern DN80(3")-DN100(4") Max Diff. Pressure : 22 Bar
End connections: Flanged PN25, Class150
Body Material: Carbon steel
Download Technical Sheets
Gestra UNA SPECIAL PN63 Angle pattern DN65(2 1/2")-DN100(4") Max Diff. Pressure : 45 Bar
End connections: Flanged PN63
Body Material: Alloy steel for high temperature service
Download Technical Sheets
Thermodynamic Steam Traps DK
PN 40 to PN 63
Features of the DK series:
● Discharge with virtually no banking-up
● Robust, insensitive regulator
● Installation in any position
● Max. admissible back pressure 80 % of the upstream pressure
Gestra DK45
End connections: Flanged PN40, Class150/300, socket-weld ends, butt-weld ends, screwed sockets
Body Material: Carbon steel
Download Technical Sheets
Gestra DK47, DK57
End connections: Screwed sockets
Body Material: Stainless steel
Download Technical Sheets
Steam Traps for Special Applications
Gestra AK45 PN40
For discharging condensate from steam systems during
start-up and draning residual condensate at shut-down.
Factory-set closing pressure 0.8 bar
Download Technical Sheet
Gestra UBK46 PN40
Steam traps with adjustable condensate discharge temperature.,
thereby suppressing the formation of flash steam
Download Technical Sheets
Gestra SMK22
Pocket-free steam trap for SIP applications.
Body Material: Stainless steel 316L
Download Technical Sheets - Gestra SMK22, SMK22-51
Download Technical Sheets - Gestra SMK22-81, SMK22-82
Gestra TK, GK
For the discharge of very large condensate flowrates
Body Material: Cast iron
Download Technical Sheets - Gestra TK23, TK24
Download Technical Sheets - Gestra GK11
Steam Trap Units for UNIVERSAL (Swivel) Connectors
Features of the UNIVERSAL Connectors:
● Maintenance-free, ultra-compact steam traps made from stainless steel, suitable for all UNIVERSAL (Swivel) connectors. Installation in any position
● Integrated spiral wound gasket for connector
● Only two screws make for a quick and easy installation
● All steam trap units are optionally available with a UNIVERSAL connector (not fitted), e.g. UC 36, UCY 36 or TS 36.
Gestra BK 36 A/7, MK 36 A/71, MK 36 A/72, DK 36 A/7, UCY 36, UC 36 Steam Trap Units for Universal Connectors Body Material: Stainless steel CF8M
Download Technical Sheets
Gestra IB 16A-7 Inverted Bucket Steam Traps, suitable for fitting to a universal (“Swivel”) connector Body Material: Stainless steel A240-304L
Download Technical Sheets
Gestra TS 36-1, TS36-2, TrapStation
Download Technical Sheets
